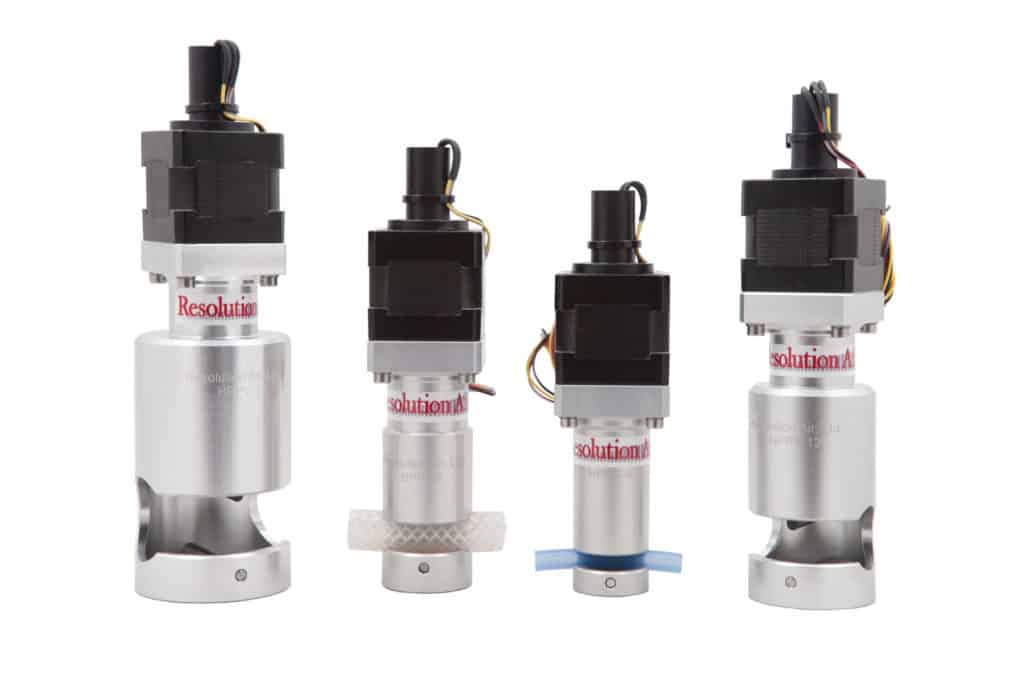

Proportional Pinch Valves for Higher Flow and Force Requirements
H Series proportional pinch valves are designed for applications requiring greater pinch force and support for larger tubing sizes. These valves provide continuous, variable control of fluid flow while maintaining a fully isolated fluid path.
By compressing flexible tubing externally, H Series valves enable precise control without exposing the fluid to internal valve components, making them suitable for applications where both performance and fluid integrity are important.
When H Series Valves Are the Right Choice
H Series valves are best suited for systems that require higher flow rates, larger tubing, or increased force to regulate fluid movement.
- Applications with higher flow requirements
- Systems using larger diameter tubing
- Fluid control requiring greater pinch force
- Industrial or process systems with demanding operating conditions
- Applications where precise control is required at higher flow ranges
Key Features of H Series Valves
- Higher pinch force for controlling larger tubing sizes
- Continuous proportional control for adjustable flow rates
- Non-contact fluid handling for contamination-free operation
- Stable and repeatable performance across operating ranges
- Designed for integration into automated control systems
Integration into Fluid Control Systems
H Series valves regulate flow by applying controlled compression to flexible tubing, allowing for continuous adjustment of fluid flow. When paired with a driver or controller, these valves can be integrated into automated systems using standard control signals. This makes them suitable for systems requiring both higher flow capacity and precise control.
Applications for H Series Proportional Pinch Valves
- Bioprocessing systems with larger tubing
- Higher flow fluid metering systems
- Chemical processing and dosing systems
- Systems requiring robust and scalable fluid handling
- Industrial fluid control applications
H Series vs Other Valve Options
H Series proportional pinch valves provide continuous control of fluid flow, enabling more precise adjustment compared to traditional on/off valves. This improves system performance in applications requiring accurate flow regulation.
Compared to smaller valve configurations, H Series valves are designed to handle larger tubing sizes and higher force requirements, making them suitable for more demanding applications.

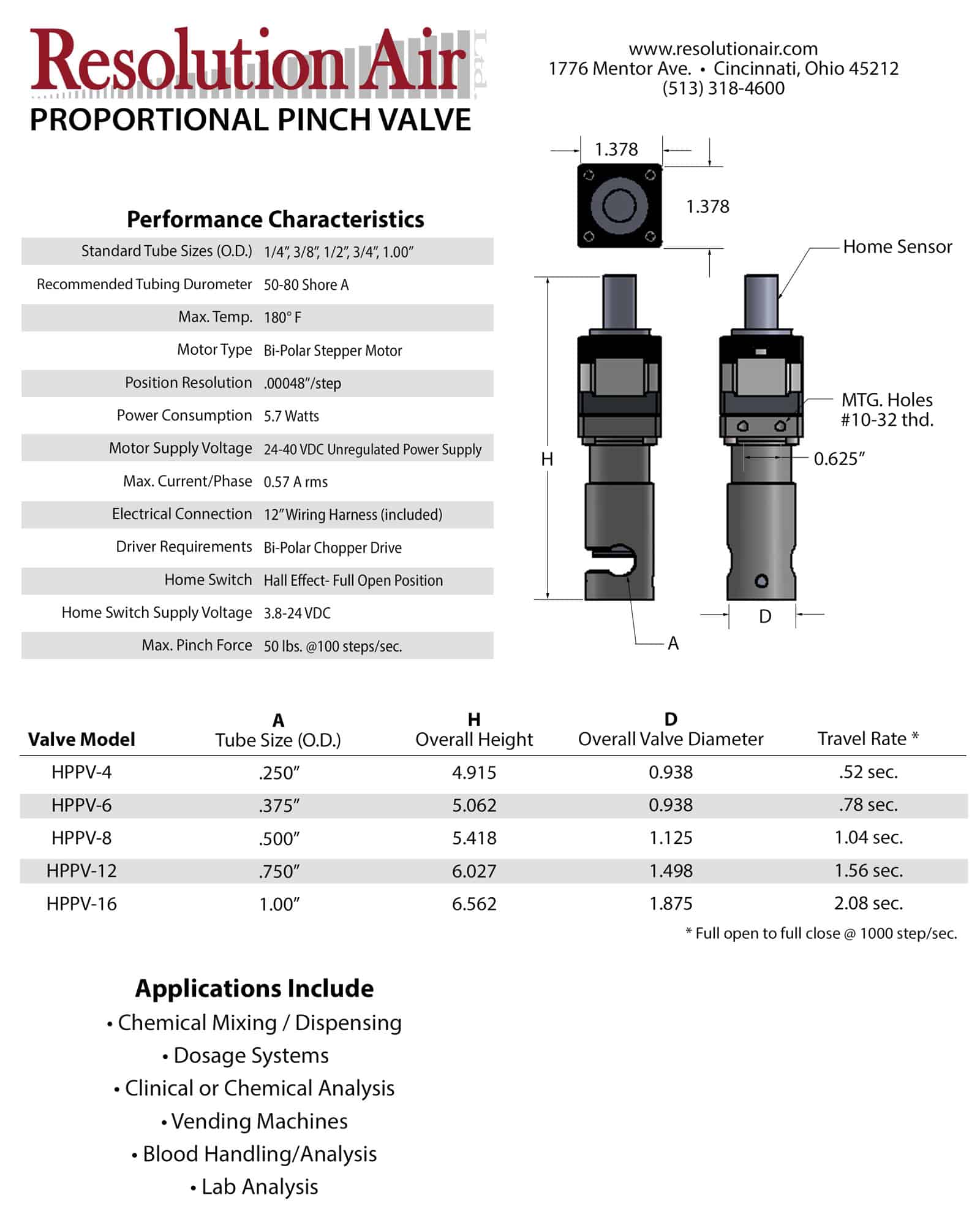

H Series Technical Resources
Need Help Determining If H Series Is Right for Your Application?
Selecting the appropriate valve depends on your system requirements, including flow rate, tubing size, and control needs. If you are evaluating options, guidance is available to help you determine the best solution.
