Proportional Pinch Valve Technology
Proportional pinch valves provide controlled regulation of fluid flow by compressing flexible tubing rather than allowing the fluid to pass through internal valve components. This non-contact approach enables precise, continuous control while maintaining complete isolation of the process fluid.
Unlike traditional pinch valves that operate in an on/off state, proportional pinch valves allow variable positioning, enabling accurate flow adjustment across a defined range. This makes them well-suited for applications requiring precise fluid metering, repeatability, and integration with automated control systems.
Why Proportional Control Improves Fluid System Performance
In fluid control systems, the ability to adjust flow continuously rather than switching between open and closed states is critical for achieving accurate and repeatable results. Proportional pinch valves provide this level of control while maintaining a simplified and sanitary fluid path.
- Continuous flow adjustment enables precise dosing and metering
- Improved repeatability supports consistent system performance
- Reduced system variability compared to on/off valve control
- Better compatibility with automated control strategies
Non-Contact Fluid Handling for Sanitary Applications
Because proportional pinch valves control flow by compressing tubing externally, the fluid remains fully contained within the tubing at all times. This eliminates exposure to internal valve components and reduces the risk of contamination.
This approach is particularly important in applications where sterility, fluid integrity, or cross-contamination prevention are critical.
- No wetted valve components
- Fluid remains fully contained within tubing
- Supports sterile and contamination-sensitive processes
- Simplifies cleaning and system maintenance
Applications for Proportional Pinch Valve Technology
Proportional pinch valves are used in systems that require precise, repeatable, and sanitary fluid control.
- Bioprocessing fluid control
- Fluid metering systems
- Chemical dosing and dispensing
- Laboratory diagnostics and automation
Proportional Pinch Valve Configurations

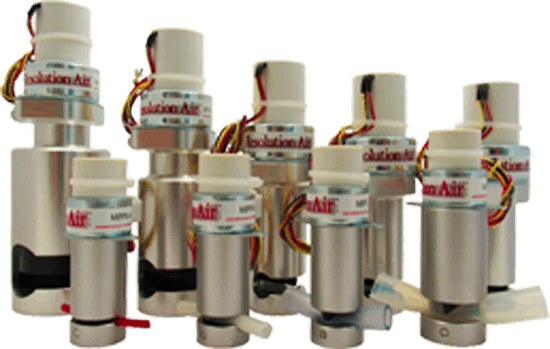

Resolution Air offers proportional pinch valves in multiple configurations to support a range of system requirements, including compact precision systems and higher-force applications.
M Series Miniature Proportional Pinch Valves
M Series valves are designed for applications requiring precise control in a compact footprint. These valves are well-suited for low-flow systems and applications where space and fine control are critical.
H Series Hybrid Proportional Pinch Valves
H Series valves are designed for applications requiring higher pinch force and support for larger tubing sizes. These valves are used in systems with higher flow requirements or more demanding operating conditions.
Selecting the Right Valve for Your Application
Choosing the correct proportional pinch valve depends on several factors, including flow requirements, tubing characteristics, system integration needs, and the level of control required.
Understanding these variables is essential to ensuring reliable system performance and achieving the desired level of precision.
Evaluate Performance in Your System
For applications where validation is required, proportional pinch valves can be evaluated directly within your system. This allows engineers to confirm performance, integration, and control characteristics under real operating conditions.
